VANGUARD - WirelessHART® Gas Detectors

Pressure
Temperature
Gas
Level
Flow
Limit Switch box
Vibration switches
Diaphragm seals
Accessories 		Vanguard

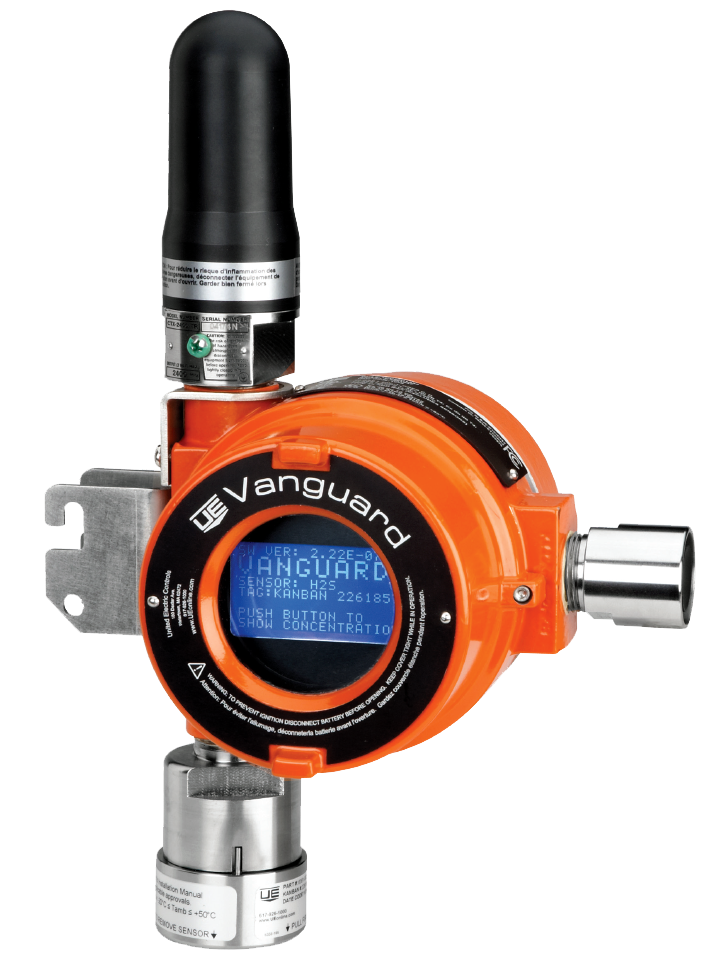

 WirelessHART® Gas detector for monitoring of toxic and combustible gases.

  • Reduced installation and deployment costs where and when needed thanks to wireless installation.

  • Interoperable with existing wirelessHART® networks and predictive asset maintenance (PAM) systems.

  • Simple and intuitive interface for bump testing and calibration.

  •  Five-year battery life reduces long-term maintenance costs.

  • Patented FlexSenseTM technology for easy sensor installation.
Wireless gas detector for monitoring toxic and combustible gases, including methane (CH4), hydrogen sulfide (H2S), carbon monoxide (CO), hydrogen (H2), ammonia (NH3) and propane (C3H8).

The Vanguard WirelessHART® gas detector is designed to monitor gas emissions in areas with power and signal cable limitations. It significantly reduces design and implementation time and cost. A true wireless device with a 5-year battery life and wirelessHART® communication, Vanguard uses interchangeable toxic and combustible gas sensors that can be hot-swapped using UE's patented FlexSenseTM technology.

Typical applications using the Vanguard include storage tank monitoring, fence line and emission monitoring, and well removal and abandonment (P&A). The Vanguard detector can be used in the Chemical, Petrochemical, Oil&Gas, Power Generation fields.

Approval according to UL/IEC 60079-29-1 standard in progress

CE - EuropaATEX approvedIECEx internazionaleCSA - Canada


TECHNICAL BROCHURE PDF       INSTRUCTIONS MOD TCD50 PDF       INSTRUCTIONS MOD TCD60 PDF

SPECIFICATIONS
Sensor  >
Methane
(CH4)		Propane
(C3H8)
Hydrogen Sulfide
(H2S)
Carbon Monoxide
Ammonia
(NH3)
Range
 0-100% LEL
 0-100 ppm 0-500 ppm 0-100 ppm
Resolution
 1 LEL 1 ppm
 1 ppm 1 ppm
Accuracy2
 ±2% LEL o ±5%
of indication 3		 ±2% ppm o ±5%
of indication  3		 ±2% ppm o ±5%
of indication  3		 ±2% ppm o ±5%
of indication  3
Response time
 30 sec. <30 sec. <30 sec. <5 min.
Stabilization time
 2 min. <1 min.
 <1 min. 5 min.
Operating Temperature
 -40°C / +65°C -40°C / +65°C -40°C / +55°C -20°C / +40°C
Storage life
 3 years
 1 year
 6 months
 6 months
Service Life 1
 5 years
 2 years
Storage Temperature
 22°C (Recommended)
1 Expected service life varies depending on environmental conditions and gas exposure
2 Under standard conditions: 20° C (68° F) and 1.0 atm. Accuracy varies with frequency, calibration accuracy and environmental conditions (e.g., barometric pressure,
   temperature and humidity).
3 The highest value is considered.

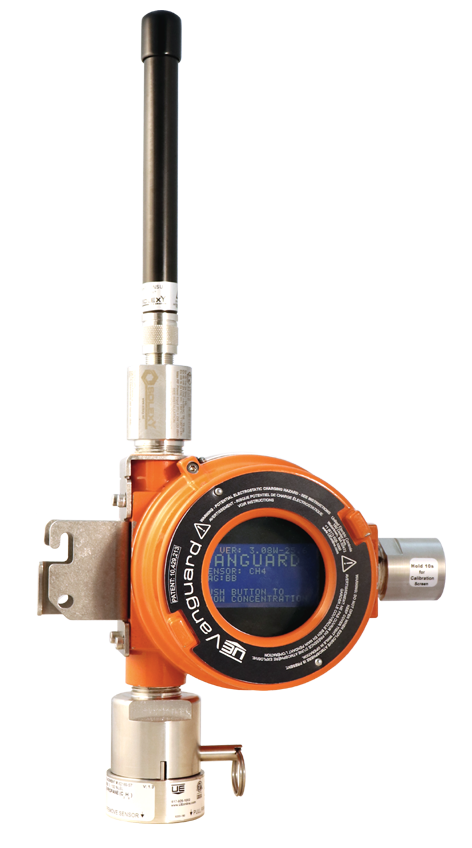

TCD60 General Features
  • Wireless capability
  • Field replacement of sensor and battery without "Hot" permits.
  • Interoperability with Wireless HART® Networks and Asset Management Systems (AMS).
  • Simple calibration and operation.
  • More than 5 years of battery life.
  • Portability
  • Approved for classified area.
    ATEX, UL, CSA, IECEx

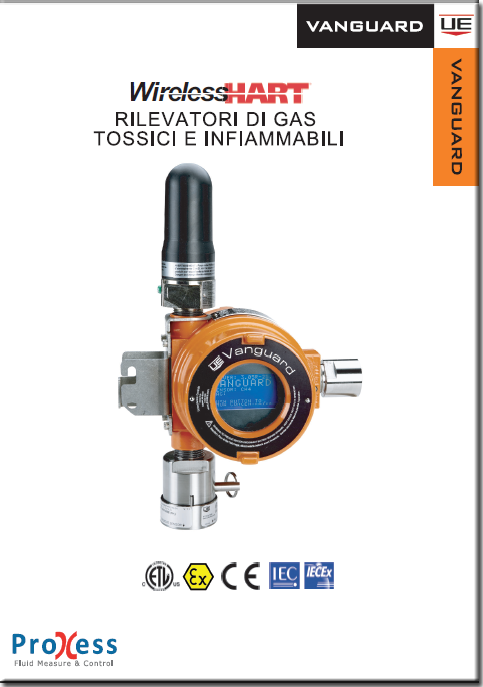

Vanguard catalogue
DOWNLOAD THE TECH BROCHURE
DOWNLOAD THE INSTRUCTIONS

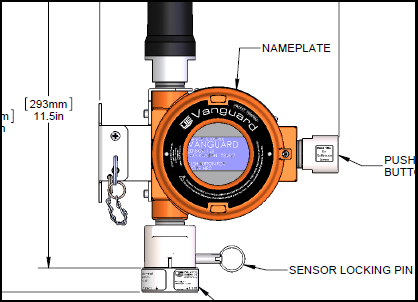

 Disegno
DOWNLOAD THE DRAWING

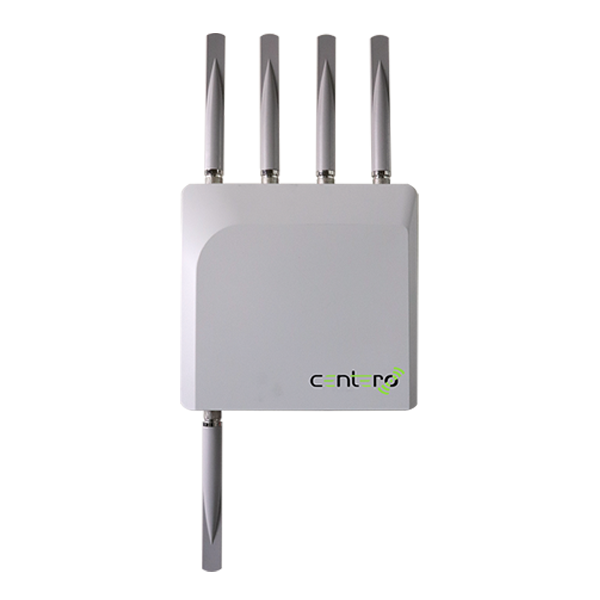

Gateway
  • WirelessHART compliant Network /Security Manager, Gateway and Access Point
  • Includes both WirelessHART and WiFi MESH+ high throughput backbone connectivity
  • Hosts intuitive INTREPID application modeled after field device lifecycle
  • Extended WirelessHART connectivity range to field instruments – up to 1.2 miles (2,000 meters) LOS

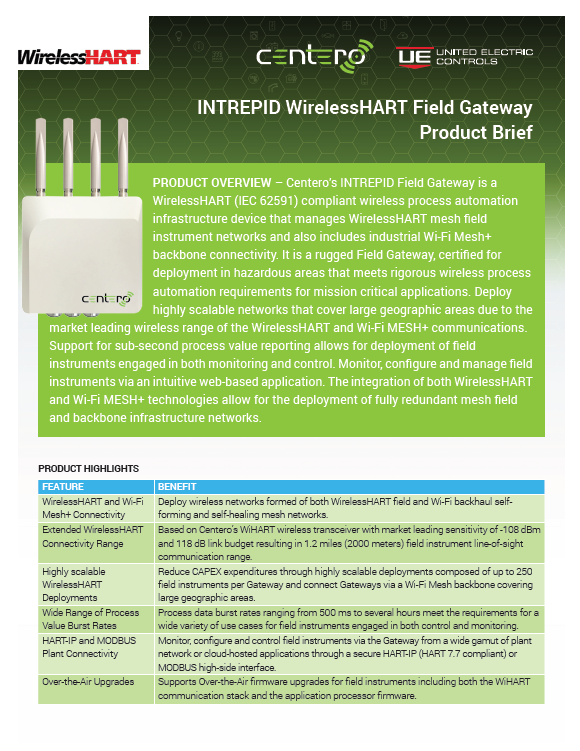

 Intrepid catalog
TECHNICAL BROCHURE
